Marine Hose Supplier Indonesia — Floating, Submarine & Tanker Cargo Hoses

We supply high‑performance marine hoses for crude oil and petroleum product transfer, including floating mainline and tail hoses, one‑end reinforced (half float), reducer hoses, tanker rail hoses, and submarine mainline hoses. All hoses are manufactured and tested to international industry standards (OCIMF GMPHOM 2009) with ISO 9001:2015 quality assurance and optional third‑party inspection.

Construction and Specification

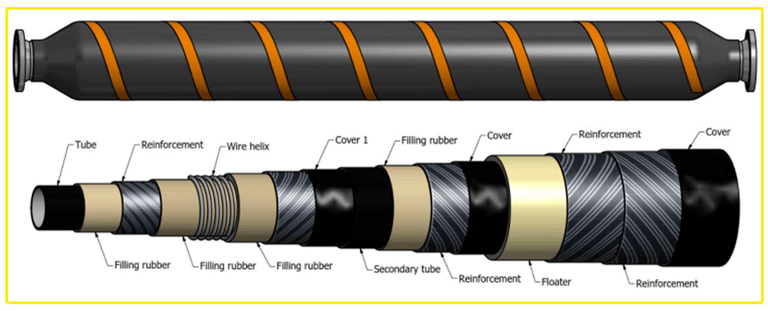

Single Carcas Floating Hose

Inner Tube. : Nitrlie Butadiene Rubber
Reinforcements : Multiple Plies High Tensile Nylon Cord, Helical Body Steel Wire
Outer Covers. : Synthetic Rubber Hose, Abrasion, Oil and weather resistance
Floating Material : Closed Cell Foam
Flange : ASME B16.5 - WN Class 150lb - 300lb on request
Nipple. : Seamless pipe Material ASTM A-106 A (max. Carbon 0.23%)

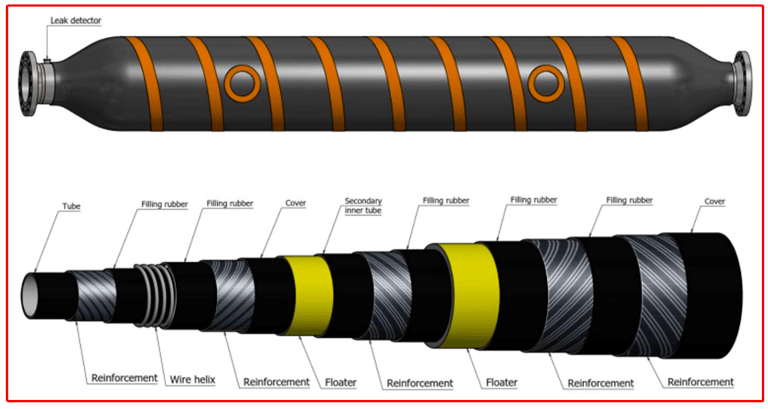

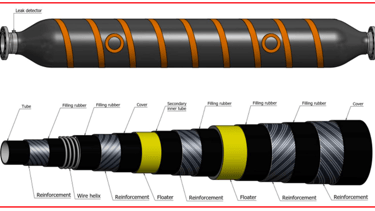

Double Carcas Floating Hose

Working Pressure : 15 bar /19 bar / 21 bar
Safety Factor : 5 x Working Pressure
Bursting Pressure : 75 bar / 95 bar / 105 bar
Bursting Pressure 2nd Carcass : 30 bar / 38 bar / 42 bar
Suction pressure : -85 Bar (25 inHg) Vacuum
Transport Fluid. : Crude Oil and Petrolium Products
Aromatic carbon Content : Max 50%
Buoyancy : Min. 20% or according to requirement
Operating Temperature. : Min. -20 Celc. to Max 82 Celc
Electric Continuity. : Discontinous or Discontinuous
Leak Detection. : Visible Leak detector available on deck Carcass

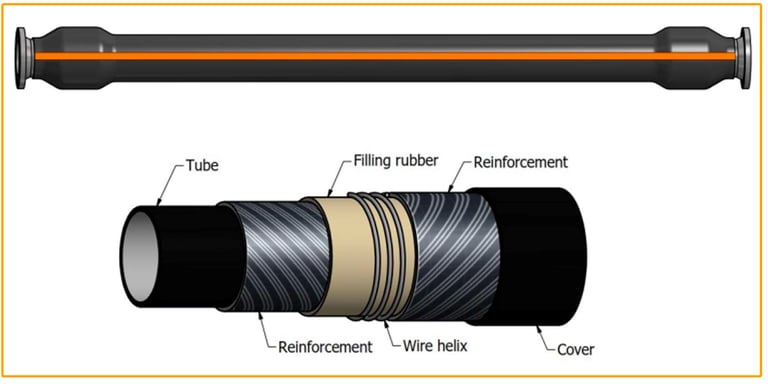

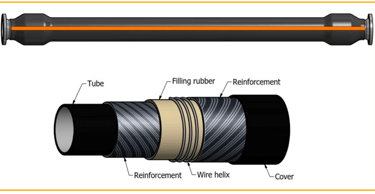

Submarine Hose

Welding between flanges & Nipples are accordance with GMPHOM 2009 and to be 100% radiographed
All surface of flange and nipples are protected with Hot Dip Galvanized coating
brand manufacturer is certified with ISO 9001:2015

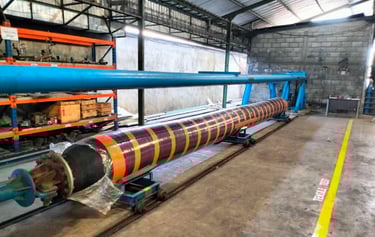

All individual products will be certified by Internal Quality Assurance

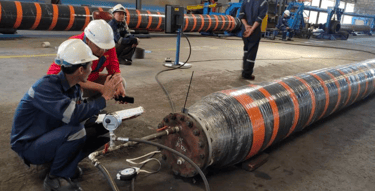

3rd Party witness inspection can be held upon requested
any different or spect specification can be discussed upon request
